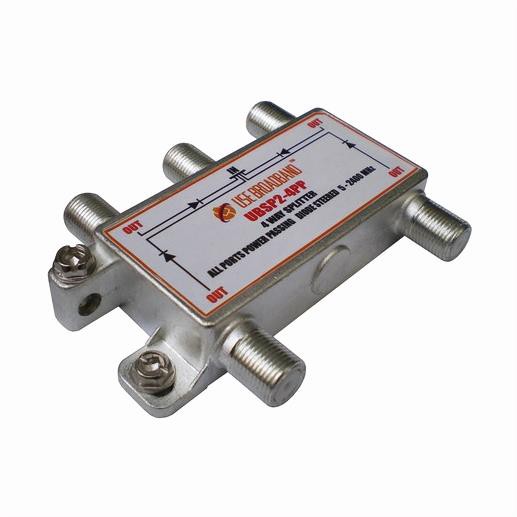

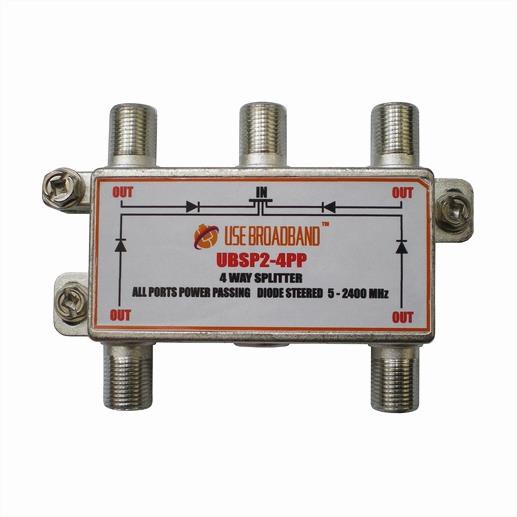

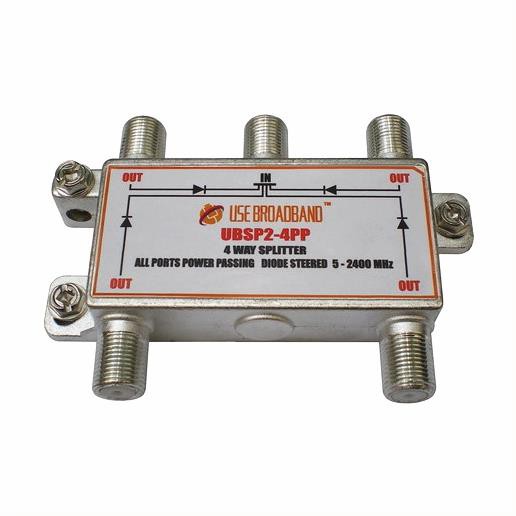

2400MHz coaxial cable TV 4 way splitter
Features:
1. Zinc die-cast housing, tin-plated
2. Light weight and compact size
3. Easy installation with two edge hole sites
4. Screening factor: 5-2400MHz≥100dB
5. Low insertion loss, high isolation, perfect performance index
6. Designed for SATV/CATV
7. Power passing-24V 0.8A(MAX.)
8. All ports F-(f)connector,75Ohm
9. 360° degree 24K gold plated contacts
10. CE approved
11. Excellent quality, 100% factory QC tested
| Specifications:4 Way Splitter (UBSP2-4PP) | |||||
| Frequency Range(MHz) | 5-40 | 40-1002 | 1002-1750 | 1750-2150 | 2150-2400 |
| Insertion Loss(dB)max | 8.0 | 8.5 | 9.0 | 9.5 | 11.0 |
| Isolation(dB)min |
22 |
22 | 22 | 22 | 22 |
|
Return Loss(dB) min |
11 | 13 | 13 | 13 | 13 |
| RFI(dB) | -120 | ||||
| Impedance | 75Ohm | ||||
| Power Passing | One Port Passing | ||||
|
Wateproof Test (Min) |
15 PSI | ||||
