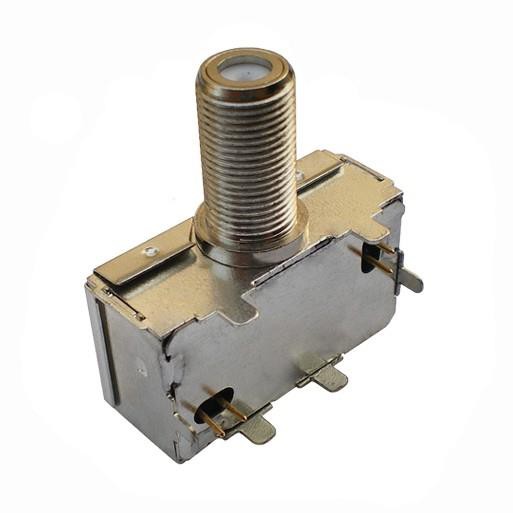

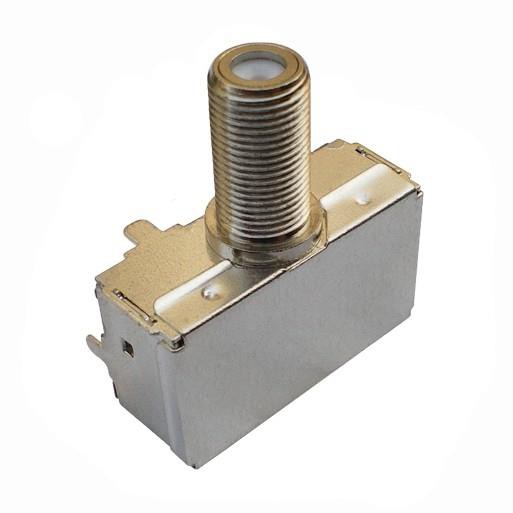

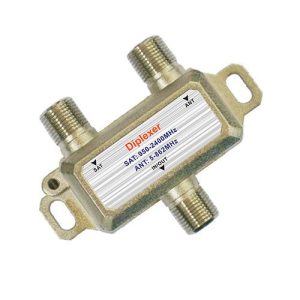

Series of wirewound diplexers contain an integrated coaxial F-connector and are specifically designed for DOCSIS 2.0 broadband communication platforms including cable modems, digital set-top boxes, and residential gateways. Ideal for digital silicon tuner applications, provides for excellent insertion loss and rejection performance in an economical, fully shielded, and durable structure.
Share:
Series of wirewound diplexers contain an integrated coaxial F-connector and are specifically designed for DOCSIS 2.0 broadband communication platforms including cable modems, digital set-top boxes, and residential gateways. Ideal for digital silicon tuner applications, provides for excellent insertion loss and rejection performance in an economical, fully shielded, and durable structure.
FEATURES :
• Fully Shielded Structure
• Integrated F-connector
• 75Ω Ports
• DOCSIS 1.0/1.1/2.0 Compliant
• Surge Protection Circuit
• Bellcore 1089, Surge 1 First Level
• Operating Temperature: 0°C to + 70°C
• Storage Temperature: – 40°C to + 70°C
• Humidity: 30 to 85% RH (w/out condensation)
• Detailed specifications available upon request
| SPECIFICATIONS : CATV satellite diplexer diplex filter | |
|
Parameter |
DF850FD-65/85 |
|
Low Pass |
5-65MHz |
|
High Pass |
85-1002MHz |
|
Passband Insertion(dB) |
1.2 |
|
Passband Return(dB) |
16 |
|
Rejection Level(dB) |
50 |
|
Flatness(dB) |
+/-0.25 |
|
Group Delay at passband limit(nS) |
<15.0 |
|
Impedance |
75Ohm |
|
RFI(dB) |
-120 |
