Features:

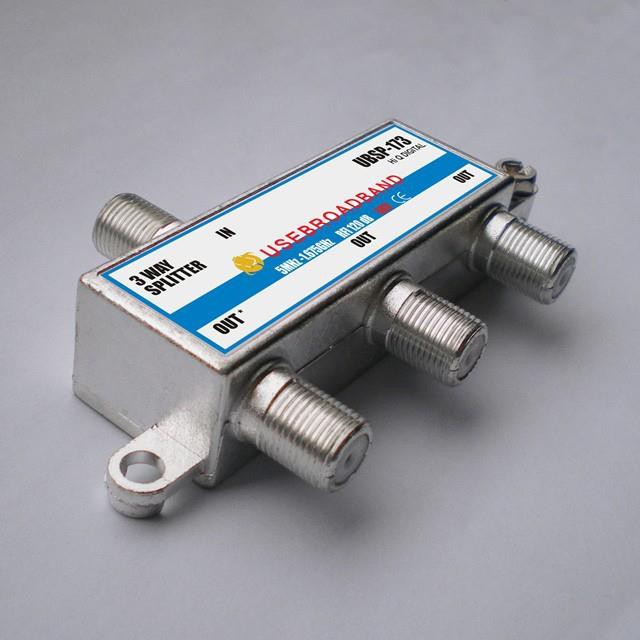

· Deluxe horizontal splitter
· 5-1675MHz bandwidth horizontal splitter
· 6KVA rated capaccitors on all ports that comply to IEEE spec(C62.41 Cat A3)
· Sealed F-ports that comply to SCTE specifications
· Low inter-modulation > 110dB
· -120dB RFI shielding
· Corrosion resistant die-cast plated zine housing
· Convenient 3 way (Slot,Hex,Robertson) mounting screws included
· Excellent quality, 100% factory QC tested
| PARAMETER | FREQUENCY | UBSP-173 |
| Insertion Loss Input to Output Maximum(dB) | 5-15 | 3.5/6.8 |
|
15-50 |
3.5/6.8 |
|
|
50-550 |
3.6/7.3 |
|
|
550-750 |
3.9/8.0 |
|
|
750-1010 |
4.15/8.15 |
|
|
1010-1675 |
7.0/14.0 |
|
| Port/Port Isolation Output to Tap Minimum(dB) | 5-15 | 18 |
|
15-50 |
30 |
|
|
50-550 |
22 |
|
|
550-750 |
21 |
|
|
750-1010 |
21 |
|
| Return Loss Input/Output/ Tap port Minimum(dB) | 5-15 | 20 |
|
15-50 |
22 |
|
|
50-550 |
17 |
|
|
550-750 |
17 |
|
|
750-1010 |
17 |
